1999 - 2004 Jeep Grand Cherokee WJ Hidden Winch Mount

Kratos - The Tire Carrier designed for

WJ - 1999 to 2004 Grand Cherokee
WK - 2005 to 2010 Grand Cherokee (your hatch will sit 1/4" higher when shut after installing the new struts. The hatch operates, latches and seals as designed but it will sit 1/4" higher when closed. If you can live with that,then order. If it's going to bother you please do not order).

XJ- DISCONTINUED

ATTENTION!!! Placing your rear tire on the back (hatch) of your vehicle causing an obstruction of rear-view may not meet your local State Vehicle Codes along with blocking your third brake light. Please check your local vehicle codes before placing an order. Buyer assumes all financial responsibility. It would be wise to purchase a 3rd brake light which mounts in the wheel well. Companies such as 4 Wheel Parts sell third brake lights.

• Description - Click Here
• Material and Build - Click Here
• Parts Content - Click Here
• Customer Reviews about our tire carrier - Click Here

Our tire carrier involves brute strength, power and force from the custom built struts  to raise that heavy offroad tire into the air. There for, with all that brute strength, power and force, we call our tire carrier "Kratos - The Tire Carrier".

In Greek Mythology.  Cratos was a son of the Titan Pallas (not to be confused with PallasAthena) and the goddess Styx. He was the personification of strength and power. The name is derived from the common noun Κράτος, meaning "force", "strength", or "power". The spellings "Cratus" and "Kratos" are also used.

Uncle Joe, weighing in at 184 pounds sits on top of his 97-lbs 35" tire all mounted to the Kratos. Excellent location to fish in the river from if we may say so...

Front Tow Hitch Receiver w/ D-Ring Shackle Tabs (HEAVY DUTY) for Jeep Grand Cherokee WJ 1999 - 2004, Grand Cherokee WK 2005 - 2010, Jeep Commander XK 2006 - 2010 (fits CRD and Gasoline Models)

The Idea: To have a removable winch mounted to a tow receiver plate with solid D-Rings attachments. Recessed design, low overhang with minimal approach angle loss. To be mounted behind factory bumpers. The front tow receiver has many uses and comes in quite useful. 100% Bolt On.

In Summary as stated by a fellow Jeeper, "You guys just put all front tow hitch manufacturer's to shame with this product". It's probably true.

Our WJ and WK, XK Front Tow Hitch Receiver w/ Shackle Tabs are built with A572 Grade-50 steel which is also used in building beams. It's welded to 1/4" plates and two 1/4" thick gussets. The Center tube is a 2" x 2" by .188 wall thickness. We weld MULTI-pass on all contact points of the 3/4" shackle tab plate. Mounted to your frame rails with Grade-8 hardware and frame sandwich plates which are also 1/4" thick. Take Recovery Seriously!!!

(WJ) The mounting plate is constructed from 1/4" Plate and has three mounting holes to the underside of the WJ's uni-body frame-rail. Mounts to factory holes, no drilling required. Minor grinding required under uni-body frame-rail. To mount behind Limited bumpers you must cut off the two center plastic pieces to amke enough room for the 2" receiver.
(WK and XK) The mounting plate is constructed from 1/4" Plate and has four mounting holes to the underside of the WK's/XK's uni-body frame-rail. Mounts to three factory holes plus one additional hole deep back into the frame-rail, one hole drilling required per side.

The Shackle Tab is constructed of 3/4" thick x 7" length Grade-50 Steel and is welded to the 1/4" plate all around with two gussets on the side. The shackle tab has a 7/8"" hole for D-Ring Shackles. These are the same shackle tabs we use on our winch mounts and bumpers.

Grade 50 is a high strength, low alloy steel that finds its best application where there is need for more strength per unit of weight. Less of this material is needed to fulfill given strength requirements than is necessary with regular carbon steels.

Grade 50 is used in general plate applications when the plate will be riveted, bolted, or welded. Grade 50 is a Columbium-Vanadium steel that offers a minimum yield of 50,000 PSI. In addition, ASTM A572 Grade 50 is noted for its increased resistance to atmospheric corrosion. Grade 50 contains more alloying elements than plain carbon steel and thus is somewhat more difficult to form. Grade 50 is more difficult to cold work, but can be successfully bent or shaped but requires more force than plain carbon steel.

ASTM A572 Grade 50 is considered a "workhorse" grade and is widely used in many applications. Steel mills produce channel and heavy beams with Grade 50. It is commonly used in structural applications, heavy construction equipment, building structures, heavy duty anchoring systems, truck frames, poles, liners, conveyors, boom sections, structural steel shapes, and applications that require high strength per weight ratio.

Hardware:
All required Grade-8 mounting hardware is included. Shackle Tabs arrive as a pair.

Finish:
Arrives Bare Steel.

Installation:
Very simple. Bolt on application - See video

For WJ - Remove factory bumper fascia, grind down small sheet-metal lip under uni-body frame rail, install Front Tow Receiver  and frame rail mounting plates, reinstall bumper fascia. Grinding required, no drilling required.

For WK/XK  - Remove factory bumper fascia, install Front Tow Receiver Kit and frame rail backing plate using three nuts and bolts in factory holes, drill a 3/8" hole for the fourth mounting location deep back on the frame rail. Reinstall bumper fascia. Drilling required. No grinding or cutting necessary.

Krawler Gen 2 Now Available. Current build time is 2-months

 The HK Krawler provides better approach angles on the sides. The front of the bumper is slanted forward to give it a sharper more aggressive look and more room for 12,500lbs winches.

• Constructed from a combination of 1/4" and 3/16" plates. The bottom plate and center plate are 1/4" thick steel and the sides are 3/16" thick steel.
• Designed for 12,500 lbs winches.
• Built for extreme crawling and front approach angle and tire clearance.
• Bumper arrives bare steel.
• Bumper is built as a recessed winch mount for 35"+ tires and will require cutting of the front cross-member along with the sides of the factory sheet metal bumper at an angle.
• Comes standard with two 3 1/8" x 3 1/8" square holes for Flush Mount LED lights (lights not included). These holes are also used to reach the mounting area in the frame rail.
• 100% Hand-made in the U.S.A. Hand bent, hand constructed, welded, grinded and sanded.
• Heavy duty steel construction
• Maintains factory front end measurement - does not stick out 85 feet past the front end (sarcasm)
• Does not restrict air-flow to your radiator
• Mounts to your vehicle using ten bolts; 5 Bolts on each side which include one factory bolt mounting location which is attached to double stamped steel on the frame rail. We provide all hardware.
• Package includes (1)Steel Recessed Winch Bumper (2) winch mounting plates), (2) hood support brackets, (8) Grade-8 Serrated Flange Bolts, (8) Grade-8 Serrated Flange Nuts, (2) Class-8.8 10x1.5x40 Metric Bolts.
• Recessed Winch Mount System - requires cutting of the factory cross member, also known as the steel bumper behind the bumper fascia

AVAILABILITY: IN STOCK - SHIPS IN TWO BUSINESS DAYS.

• Compatible with or without our winch mounts and bumpers
• Mounts to factory mounting points, no drilling required
• Can be used behind factory bumper fascia although some trimming of the bumper fog light area "may" be required so accommodate the expanded coverage
• Requires cutting off factory radiator core support "if" you haven't already destroyed it on the rocks
• 1/4" x 4" bottom skid plate welded to 3/16" x 2.5" front plate
• 1/4" Mounting Plates and Frame Sandwich Plates
• Grade-8 hardware and frame rail sandwich plates included
• Arrives bare steel - ready to primer and paint or select primered and painted (allow extra time)

CURRENT LEAD TIME:  Peak Season, Three to Four Months before shipment..

This kit is our Winch Mount w/ Shackle Tabs & Gatekeeper welded into one piece making a practically indestructible front end which we call "The StreetSweeper".

Winch Plate

• 1/4" Steel plate ALL AROUND combined with 1.5" x .95 DOM tubes.
• Welded into one-piece design.
• Compatible to both 4.0 Liters and 4.7 Liters
• Mounts to your vehicle using ten bolts; 5 Bolts on each side which include one factory bolt mounting location which is attached to double stamped steel on the frame rail. . We provide (eight) Grade-8 Serrated Flange Bolts and Serrated Flange Nuts PLUS two Class 8.8 10mm bolts to be used in the factory mounting location.
• Heavy-Duty Solid construction will outlast your Jeep.
• Bolt on Kit can be used with or with-out bumper fascia (bumper fascia trimming required)
• Easy installation can be done by anyone with basic power tool skills.
• Made in the U.S.A.
• Replaces 18 gauge sheet metal between your frame rails.
• Reinforces front end providing more uni-body rigidity

GateKeeper Skid Plate (welded to Winch Plate)

• The skid plate is constructed from 1/4" x 4" plate which runs across from left to right and curves up covering radiator and core support.
• The seven tube design is constructed from eight 1.5" x .095 DOM Tubes, welded from the bottom skid plate to the winch mount.
• Built to take a beating against the rocks

All of the above mentioned parts are welded together for one solid piece design. This is the ultimate setup to build your own bumper from.

• Package Weight 65 pounds
• Package Dimensions 42"L x 16"W x 12"H

---------------------------------------------------------

These struts are not the stuff you buy from ebay, amazon or your local parts store. These struts are serious beef and last a very long time. These are custom built and you'll receive a text from us after ordering. We will build them to the amount of pressure you'll need depending on what you would like to attach to the rear hatch, like jerry cans, high lift jacks etc. If you are not planning on attaching anything on the hatch and just need something more reliable then we will build them with factory spec pressure.

These are built in batches. Requires two weeks lead time to ship.

The Problem:

The factory stock aluminum roof rails are mounted to the Jeep using 5 riv-nuts and bolts in a straight line across each roof rail. Failure of the hardware is experienced with any type of side-force applied to the aluminum factory rails and continues use of heavy pressure. We had our Frontrunner Featherlite Roof Top Tent, which only weighs 90 lbs) mounted to the factory rails for two years and camped on a normal basis up to three times per month with multiple nights out in the sticks and deserts. Eventually as time passed, the factory rails began bending causing the tents mounting bolts to hit the roof and cause a hole. One final straw witht he factory rails completely failing was when we flopped the Jeep at West lake Trail in the Sierra National Forest. When the Jeep flopped, the tent hit the floor from it's side and ripped the rails right out.

The Solution:

Our replacement rails are of a stronger material, have more mounting points, constructed of steel DOM Tube with 3/16" mounting plates.

• 1.5" x .095 Steel DOM Tube Rails
• Two 1-degree bends across the rails which provide a flat center section of the rail for mounting roof top tents, baskets, etc...
• Three mounting base plates with 11 bolts mounting rails to roof
• Mounts using 11 riv-nuts and bolts with-out having to drop down headliner OR use fender washers and secure the bolts from under the headliner. Our replacement rails have been mounted to our Jeep now for two years using 11 riv-nuts and bolts on each rail and they have not failed.
• Mounting hardware on left and right side of each rail instead of just one straight line to provide adequate strength and durability for side force.
• Longer than factory rails covering more area around the roof line.
• Does not interfere with Sunroof
• Bottom Line: Strong, durable, Reliable and light weight. Using .095 wall thickness DOM tube provides the strength we all need for roof rails while keeping weight at a minimum
• Finish: Arrives Bare Steel

Our radiator skid plate is called "The GateKeeper" because it acts as a gate between the rocks and your radiator support bar/radiator. The GateKeeper III is a variation of the original design with-out the 1.5" bars. Compatible with HK Overland and Krawler Bumpers, Hidden Winch Mounts and/or as a stand alone skid plate for your radiators core support. You know...that thin piece of sheet metal you bent while Offroad, the thing your radiator sits on... yeah that thing.

• The skid plate is constructed from 1/4" x 4" plate which runs across from left to right and curves up and bolts to bumper plate with two 3/8" x 1" Grade-8 bolts on each side.
• Heavy duty design built to take a beating against the rocks
• Compatible with HK Offroad Bumpers, winch mounts and stand alone. Not compatible behind plastic bumper fascia. If you would like to modify it to mount to a different bumper, it can be done as long as your current bumper has a flat bottom plate - see photos
• Comes fully primered and painted ready to install.
• Grade-8 Serrated-Flang Nuts and Bolts Included

Description

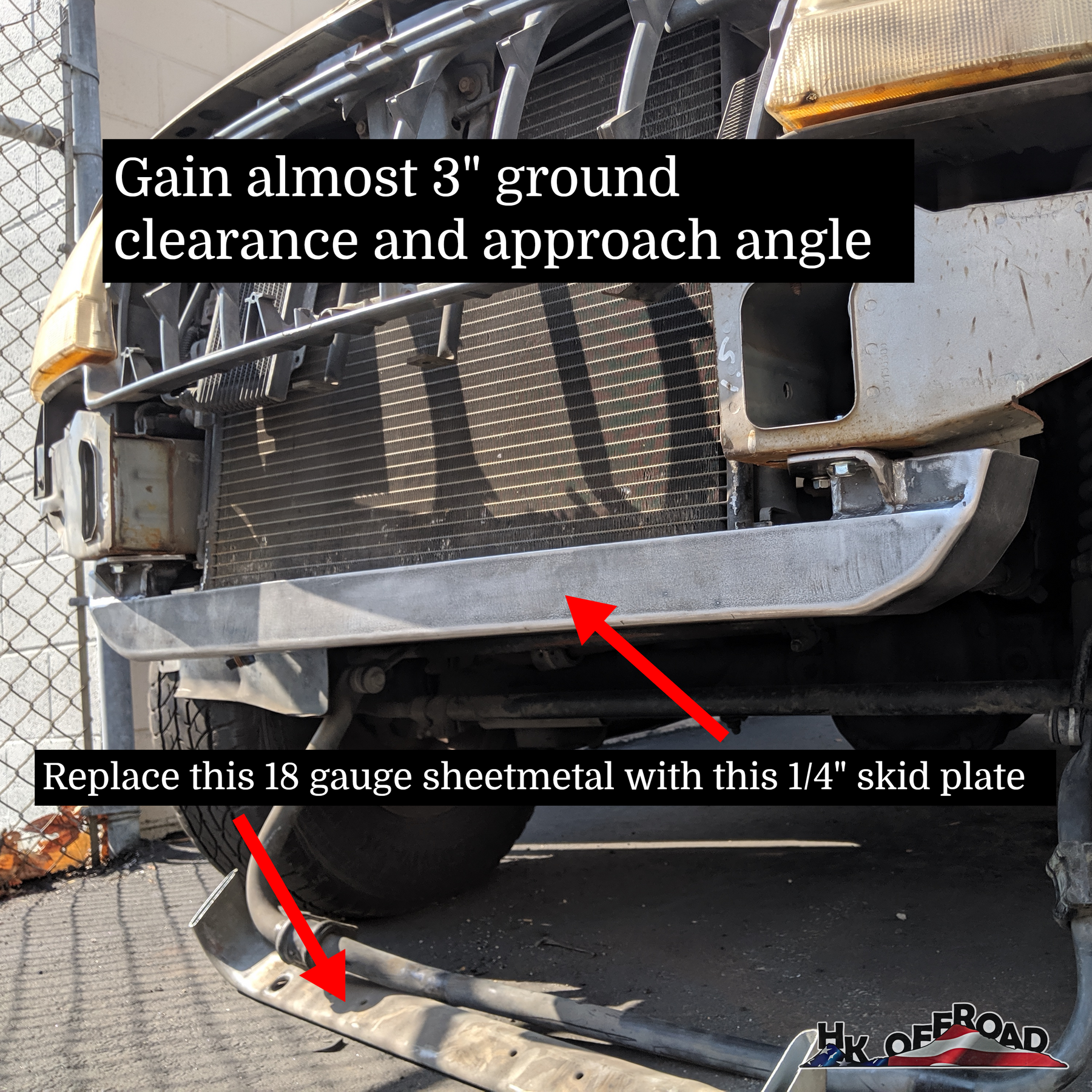

Through testing and banging on a few rocks we came to learn that the radiator support bar on the WJ is made of bread. Literally, thin sheet metal which can be damaged and moved by the slightest impact. We have redesigned our radiator skid plate a few times since our Overland Bumper release in December and have finally come to a design that is satisfactory and actually serves a purpose.

With our bumpers providing the perfect approach angle and strong mounting points, which reach all the way back near the sway bar bolts, it was imperative the radiator skid plate served a purpose as equal to the bumper.

The actual skid plate which covers the bottom of the radiator support bar is made of 1/4" steel plate by 4" wide. The plate bends around and up the radiator support bar to reach our bumper and it mounts to the bumper. This mounting supports the underside of the skid plate for impacts where the Jeep falls from an obstacle onto an object such as a rock.

The GateKeeper III weighs approximately 20 pounds.

-------------------------------

Shipping: Lower 48 States $86.

International please message us for a quote info@hkoffroad.com
Weight" 46 lbs
Packaging: 85" x 8" x 8" approximately

Functionality:

• Use for hauling long bars of metal or lumbar, mattresses, etc
• Mount Roof Top Tents
• Mount accessories such as 5-gallon water jugs, rotopax, propane tanks, shovels, axes, traction boards, cargo boxes, high-lift jacks, skii's, snowboards, canoes, surf boards etc
• Or don't place anything up there and leave it clean cause it looks just too dam good

Construction:

• Side rails manufactured from 10-gauge steel plate with two cut outs for 6" x x 1.5" Flush Mount LED lights.
• Eight dimpled holes to add rigidity
• Nine slots for straps
• Light-bar mounting hole in the front for 40" Lightbar
• Six cross bars manufactured from 1" x 2" rectangle tubes with .095 wall thickness
• 600 lbs static load capacity. 300lbs dynamic weight
• Bolt on application mounts to factory rail mounting points.  No Drilling.
• Minimal wind noise, very comfortable
• Arrives Bare steel - painting required
• Hardware included
• 3" Height
